The Importance of Coupling in Electric Guitar Design and Construction
The electric guitar, probably the most significant instrument born in the early 20th century, has left an indelible mark on cultural and musical landscapes, revolutionizing genres from rock 'n' roll and blues to jazz, pop, and metal. Whether it's the groundbreaking work of pioneers like Chuck Berry and Jimi Hendrix or the genre-defying artistry of contemporary musicians like John Mayer and Tosin Abasi, the electric guitar has been at the center of some of the most iconic moments in music history. Its strums and riffs have echoed through concert halls, festivals, and airwaves, shaping the sonic architecture of generations from Boomers to Gen Z.
While the significance of the electric guitar as a musical instrument is universally recognized, the intricate engineering that enables its unique sound is often less appreciated. Beneath the glossy finish and sleek contours lies a sophisticated assembly of components, each painstakingly designed and configured to create the guitar's distinctive tonal palette. From the choice of wood for the body to the design of the pickups and the nature of the bridge, every element has a role to play in crafting the sound that ultimately emanates from the amplifier.
Yet, among the myriad factors that contribute to the guitar's tonality, one stands out for its critical importance: the concept of "coupling." At its core, coupling is the symbiotic relationship between the mechanical and electrical aspects of the guitar that ensures the faithful translation of string vibrations into rich, amplified sound. When a guitarist strums or picks a string, the resulting vibrations don't just float aimlessly; they engage in a complex dance with the guitar's other components. These vibrations are coupled through the bridge to the guitar's body, shaping the tonal characteristics before reaching the pickups, which convert them into electrical signals for amplification. It's this nuanced interaction that allows the guitar to produce sounds as varied as the warm, resonant tones of blues to the high-gain thunder of heavy metal.
Thus, understanding the principle of coupling isn't just an academic exercise for engineers and luthiers—it's integral to appreciating the full scope of the electric guitar's artistic capabilities. As both an iconic cultural symbol and a marvel of modern engineering, the electric guitar invites us to look closer, beyond the strumming and solos, to acknowledge the scientific ingenuity that makes its music possible.
A Brief History
In contemplating the electric guitar's journey, it's essential to look back to the early 1930s, a period that saw this instrument evolve from an experimental prototype into a revolutionary force that forever altered the course of music history. Prior to this era, acoustic guitars were what graced parlors, concert halls, and jazz clubs, capturing hearts with their rich timbres but facing inherent limitations in projection and volume. Despite their emotive tonality, acoustic guitars often struggled to make themselves heard over the cacophony of larger ensembles and increasingly electrified orchestras.
Enter the realm of electrical amplification. The invention of the electric guitar addressed this gap in audibility and transformed the sonic landscape of live music. Companies like Rickenbacker took the initial steps with "frying pan" designs that were essentially electrified versions of Hawaiian lap steel guitars. This was soon followed by pivotal contributions from Gibson, which experimented with archtop designs employing magnetic pickups. These advancements were not just incremental; they were seismic shifts that redefined what a string instrument could achieve.
Technical drawing of an early Frying-Pan design
However, it was Fender’s introduction of the Broadcaster, later renamed the Telecaster, in the early 1950s that brought the electric guitar into its own. This solid-body design eliminated most of the feedback issues that plagued earlier electric and semi-acoustic models, making it ideal for high-volume stage performances. What Fender's design underscored was the realization of an objective that had been evolving since the electric guitar's inception: capturing the mechanical vibrations from a plucked string with minimal interference and translating them into a pure, amplified electric signal. This was an engineering problem at its heart, requiring an understanding not just of acoustics but also of electronics, materials science, and the intricacies of musical tonality.
As such, the contributions of Rickenbacker, Gibson, and Fender were more than mere steps in technological advancement; they were leaps in artistic empowerment, allowing musicians to break free from acoustic limitations and explore a new universe of sonic possibilities. These companies didn't just engineer instruments; they engineered a revolution, setting the stage for the electric guitar to become not only a staple in musical arrangements but also as an icon in its own right, symbolizing the endless potential of human creativity when augmented by technological innovation. When considering the historical context, the birth of the electric guitar in the early 1930s revolutionized string instruments. While acoustic guitars had been limited by their natural resonance and projection, the advent of electrical amplification enabled guitarists to not only be heard, but to be heard in new and evermore fantastical ways.
Les Paul Prototype “Log” - 1940

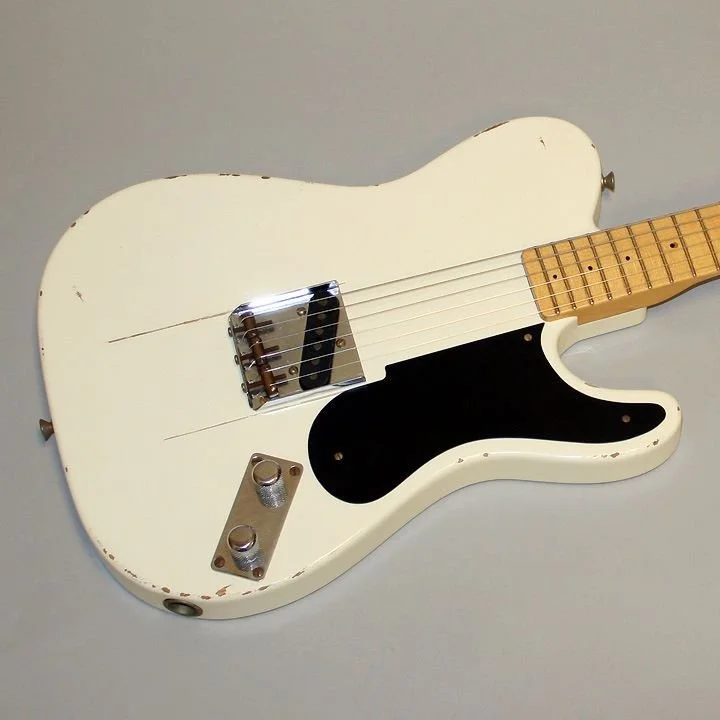

Fender Broadcaster Esquire Prototype - 1949
Coupling in Acoustic Guitars: A Natural Harmony
To fully grasp the significance of coupling in electric guitars, it is helpful to first delve into its foundational role in acoustic guitars, where the term and the principle originated. When a guitarist plucks a string on an acoustic guitar, they initiate a complex series of events that ultimately result in the instrument's distinctive sound. The initial vibration of the string sets off a chain reaction, propagating this energy through the bridge—a typically wooden component meticulously designed for this very purpose—and the saddle, usually made of a dense material like bone or synthetic composites, to the guitar's soundboard. The soundboard, traditionally crafted from resonant woods like spruce or cedar, acts as the primary resonating surface for the acoustic guitar.
This interaction is known as mechanical "coupling," and it forms the crux of acoustic sound generation. In essence, the bridge and saddle serve as conduits, channeling the string's kinetic energy into the soundboard. The soundboard's vibrational behavior is not arbitrary; it is carefully engineered through bracing patterns and wood choices to respond in a way that amplifies the strings' vibrations while also adding its own tonal characteristics. The resulting sound is a synergistic blend of the string's natural tonality and the unique resonances introduced by the soundboard, which is further shaped by the guitar's body shape and internal architecture.
“The consensus among luthiers is that face and backwoods need to be chosen from woods of differing densities because the resonant frequency of the back needs to be higher than the resonant frequency of the face, by at least a tone. ”
What we hear emanating from an acoustic guitar is, therefore, the outcome of an intricate dance between various components, each serving a vital function in coupling. This system of mechanical coupling is fine-tuned for maximum energy transfer and optimal resonance, determining not only the volume of the guitar but also the sustain, timbre, and tonal coloration of each note. It's an extraordinary interplay of physics, materials science, and acoustical engineering, tailored to produce the rich and full sound that acoustic guitars are celebrated for.
This acoustic coupling serves as the foundation upon which electric guitars build, adapting and evolving the concept to suit the unique challenges and opportunities presented by electrical amplification. Understanding this fundamental principle in acoustic guitars sheds invaluable light on how coupling is equally, if differently, critical in shaping the electrified tones that have defined genres and generations of music.
Transitioning to Electric Guitars: Solid-Body Designs
In electric guitars, particularly solid-body designs such as the Fender Stratocaster and the Gibson Les Paul, the principle of coupling is employed but with an almost antithetical objective compared to acoustic instruments. While acoustic guitars rely on coupling as a means to amplify sound naturally through resonance, electric guitars have a different primary goal: the efficient and faithful translation of mechanical string vibrations into electrical signals that can then be amplified electronically.
At the outset, it may seem like the strings, bridge, and body would serve the same purposes in both acoustic and electric guitars. However, the specific needs are almost 180 degrees apart. In an acoustic guitar, the wood's natural resonance is vital to the instrument's overall sound, necessitating a strong coupling between the strings and the soundboard to maximize this effect. Conversely, in a solid-body electric guitar, resonance can actually be counterproductive, as excessive vibrations of the body could interfere with the precise capture of the strings' vibrations by the pickups. Therefore, while acoustic guitars aim for a maximum energy transfer to the soundboard for resonance and projection, electric guitars focus more on sustaining the string vibration for a longer period.
The bridge and body in electric guitars are designed to allow the strings to vibrate as freely as possible while also ensuring that this vibration is captured in its purest form by the pickups. This forms a different kind of coupling, less concerned with natural resonance and more oriented towards sustaining the string's vibrations and converting them into electrical signals. This explains why solid-body electric guitars often employ heavier woods, and sometimes even metal components, to add mass and thus increase sustain.
This shift in emphasis from resonance to sustain and direct signal translation is exemplified by the utilization of pickups. Unlike acoustic guitars, where the body's resonance plays a pivotal role in shaping the tone, in electric guitars, the pickups serve as the primary tonal arbiters. They take the string vibrations—which have been sustained and shaped by the bridge, saddle, and body—and convert them into electrical signals with minimal coloration from the body’s own resonant characteristics.
The end result is a form of coupling that, while based on the same fundamental physics as its acoustic counterpart, serves a dramatically different musical and technological objective. This divergence in coupling strategies between acoustic and electric guitars underscores not just the versatility of the guitar as a musical instrument but also the innovative engineering solutions that have been employed to meet varied artistic needs.
The Implications of Material and Construction
Contrary to what one might initially assume, a solid mass of wood is not a neutral element when it comes to the tonality of an electric guitar; in fact, it plays a remarkably active role in shaping the sound. Although the purpose of coupling in solid-body electric guitars veers away from natural resonance as the primary objective, the choice of wood still brings its own set of acoustic properties into the equation. Woods have unique attributes—differing densities, specific resonant frequencies, and varying damping factors—that interact with the string vibrations in complex ways. These contribute to the guitar's sustain, attack, and overall tonal coloration, demonstrating that the notion of a 'neutral' body material is far from accurate.
Various species of wood, such as alder, mahogany, or ash, each come with their own acoustical signatures. Alder, for instance, is known for its balanced tonal characteristics, while mahogany often leans towards a warmer, fuller sound. These woods do more than simply 'house' the guitar's components; they engage in a nuanced form of mechanical coupling with the strings, affecting everything from the brightness or darkness of the tone to the sustain of individual notes. In this sense, the body of a solid electric guitar isn't just a frame; it's an active participant in the instrument's sonic output.
But the role of wood is just the tip of the iceberg when it comes to the engineering choices that affect coupling in electric guitars. The type of bridge used—be it a Tune-o-matic common in Gibson models, or a Floyd Rose tremolo system favored for its pitch-bending capabilities—also plays a significant role in coupling mechanics. These bridge types not only differ in functionality but also in how they interact with the strings and body, affecting factors such as sustain and tonal richness.
Additionally, the manner in which the neck is joined to the body—whether it's a bolt-on design as seen in many Fender models, a set-neck as in traditional Gibson guitars, or a neck-thru construction that offers greater sustain and harmonic richness—can also influence the coupling dynamics. Each design has its own set of trade-offs and advantages, affecting not only the mechanical coupling but also the instrument’s overall tonal balance and playability.

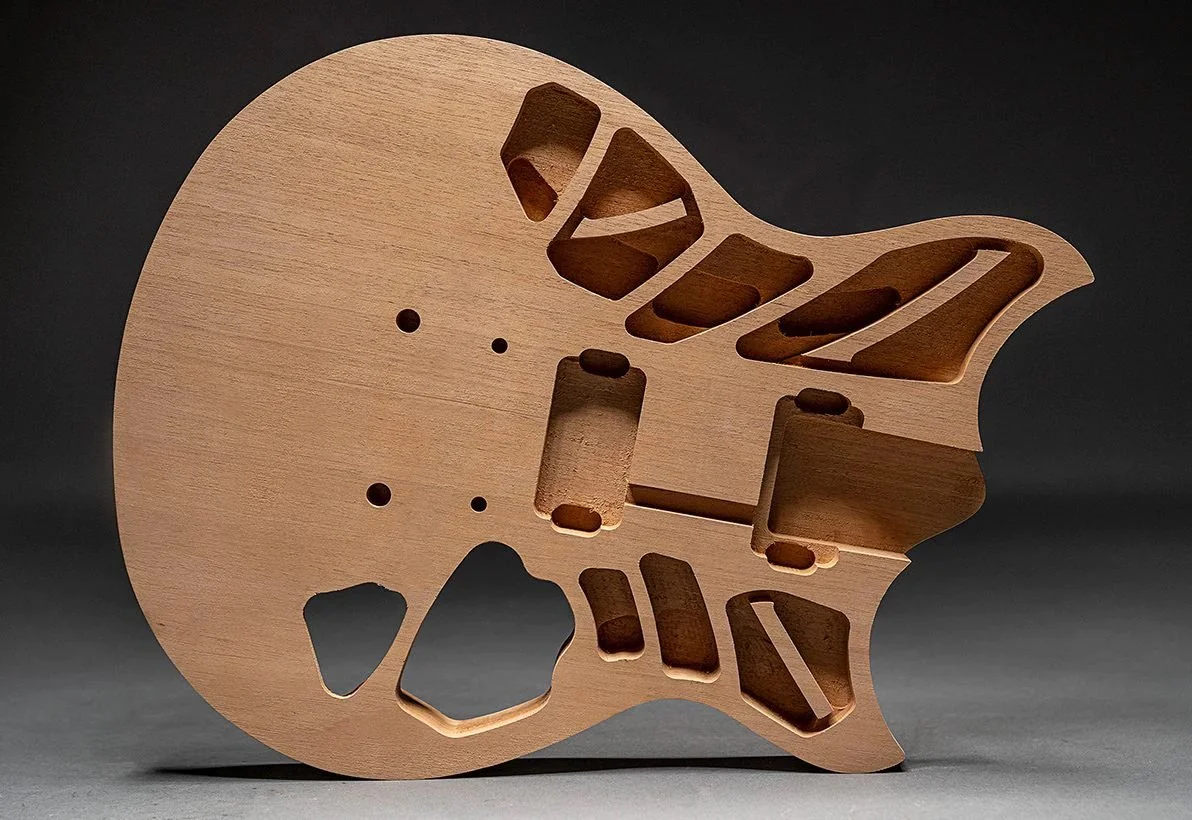

An inside look at the engineering marvel that is the Yamaha Revstar
Even more nuanced are innovations like chambered or semi-hollow bodies, which introduce controlled resonance into solid-body designs. By carving out chambers within the body, engineers can 'tune' the natural resonance of the guitar, creating a form of coupling that borrows from both its acoustic and solid-body cousins. This offers musicians the best of both worlds, combining the natural resonance of an acoustic body with the sustain and tonal shaping capabilities of a solid-body guitar. Look to the brilliant engineering at Yamaha with their Revstar models for the one of the best examples of this concept in action.
In sum, the concept of coupling in electric guitars is a multifaceted and deeply nuanced subject, a result of decades of engineering innovation aimed at fulfilling diverse musical requirements. From the type of wood used for the body to the design of the bridge and neck joint, right down to the internal structure of the guitar, each element contributes to a complex matrix of factors that define the instrument's ultimate sound and playability.
Pickup design
In today's musical landscape, the magnetic pickup stands as a testament to the importance of coupling in electric guitar design. While the technology has existed for decades, recent years have witnessed an explosion in the boutique pickup market, catering to players who are ever more discerning in their quest for particular "golden-era" sounds. This trend underscores the significance of coupling, not just in a physical sense involving strings and guitar bodies, but also in the electromagnetic realm that these pickups inhabit.
Magnetic pickups function by translating the vibrations of the guitar strings into an electrical signal through electromagnetic induction. Over the years, countless variations of pickup designs have been produced, each contributing its unique coloration and tonal attributes to the coupling process. From single-coil designs famous for their bright and twangy sound to humbuckers known for their warmth and richness, the type and construction of a pickup substantially influence how the string vibrations are captured and thus, ultimately, how the guitar sounds.
This has led to a burgeoning boutique market of hand-wound pickups and specialized designs, aiming to recapture the elusive tonal qualities of vintage instruments from the 1950s and 1960s. Guitarists chase after these golden-era sounds for their perceived warmth, clarity, and dynamic responsiveness, qualities often attributed to the unique coupling characteristics of older pickups, such as their specific magnet types, winding patterns, and even the aging of the materials. The boutique market has become a haven for players seeking to fine-tune their sound down to the most minute detail, offering pickups that are wound to exacting specifications, often by hand, to mimic the quirks and idiosyncrasies of vintage models.

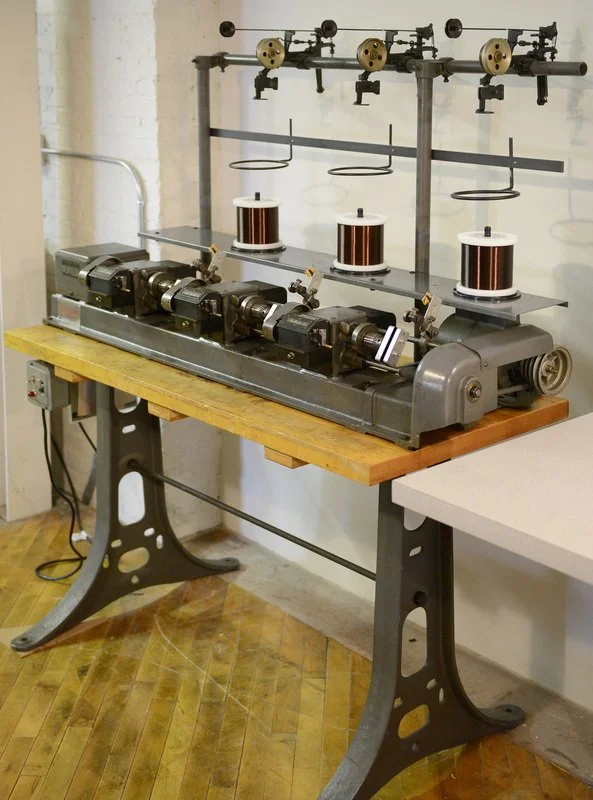

Throbak’s Leesona 102
But this pursuit of the golden-era sound isn't merely nostalgia; it highlights a growing recognition of the intricate relationship between the magnetic properties of the pickups and the mechanical vibrations of the strings. Boutique manufacturers go to great lengths to scrutinize everything from the type of wire used in winding the coils to the magnetic polarity of the pole pieces. Some even go as far as to source vintage materials or employ aging techniques to replicate the effects of time on magnetic properties, aiming to achieve a specific kind of coupling that is, paradoxically, both old and new. Companies like ThroBak have even gone as so far as to acquire the original machines used to produce the pickups of early Gibson and Fender guitars.
Moreover, the growing boutique market also reflects a broader shift towards customization in the musician's quest for individual tonal identity. It's not simply about recreating the past but about utilizing historical insights to inform modern innovation. In a sense, each boutique pickup becomes a personalized engineering solution for the artist, tailored to interact with their unique playing style and tonal preferences. This emphasizes that coupling in electric guitars is not a one-size-fits-all concept but a complex interplay of variables that can be adjusted and fine-tuned to meet the specific needs and artistic visions of individual musicians.
In essence, the magnetic pickup serves as a focal point in the ongoing evolution of coupling in electric guitars. The rise of the boutique market and the relentless quest for golden-era tones underscore the complexity and depth of this engineering challenge. They exemplify how even a well-established technology can become a platform for innovation and personal expression, deepening our understanding of coupling as a dynamic, ever-evolving relationship between musicians, instruments, and technology.
Conclusion
Understanding the importance of coupling in guitar design is not merely a technical exercise; it's fundamental to grasping how this iconic instrument produces its captivating and diverse range of sounds that have shaped popular music for generations. While the concept of coupling has its roots in the realm of acoustic guitars, where the mechanical energy of a plucked string resonates through the soundboard, it has been ingeniously adapted to the realm of electric guitars to serve a range of different objectives, from achieving prolonged sustain to capturing unique tonal colorations.
Coupling is essentially a symbiotic relationship that involves multiple elements: the strings, the body of the guitar—be it acoustic or solid-body—and in the case of electric guitars, the electrical circuitry, including pickups and other components. This intricate nexus forms the crux of the instrument's sound production, and luthiers and engineers have been manipulating these variables with remarkable ingenuity for nearly a century. They do so with the aim of achieving specific tonal objectives that are as varied as the musical genres the guitar serves. In acoustic guitars, the focus may be on resonance and natural amplification, while in electric guitars, the priorities can range from sustain to signal clarity to a multitude of specialized timbres.
Moreover, as technology advances, the boundaries of what is possible in terms of coupling are being continually pushed. Advanced materials science, electronics, and computer modeling are enabling unprecedented control over the coupling mechanisms, allowing for a personalized tonal palette that can be tailored to the minutest detail. Musicians today have at their disposal an array of tools to tweak and adapt this relationship, from adjustable bridges like those found on the Artifact line of instruments to customizable pickups, representing the latest advancements in a long history of innovation.
Additionally, as musical styles evolve and new genres emerge, the artistic demands on coupling are ever-changing. What was considered ideal for blues or classic rock may differ significantly from the requirements of modern jazz, electronic, or metal music. This makes the dynamic interplay between string, body, and electrical circuitry an ongoing subject of innovative exploration and artistic expression. The ability to manipulate this crucial aspect of guitar design allows for the continuous generation of new sounds and techniques, ensuring that the guitar remains a versatile and evolving instrument well into the future.
— Aryeh East
